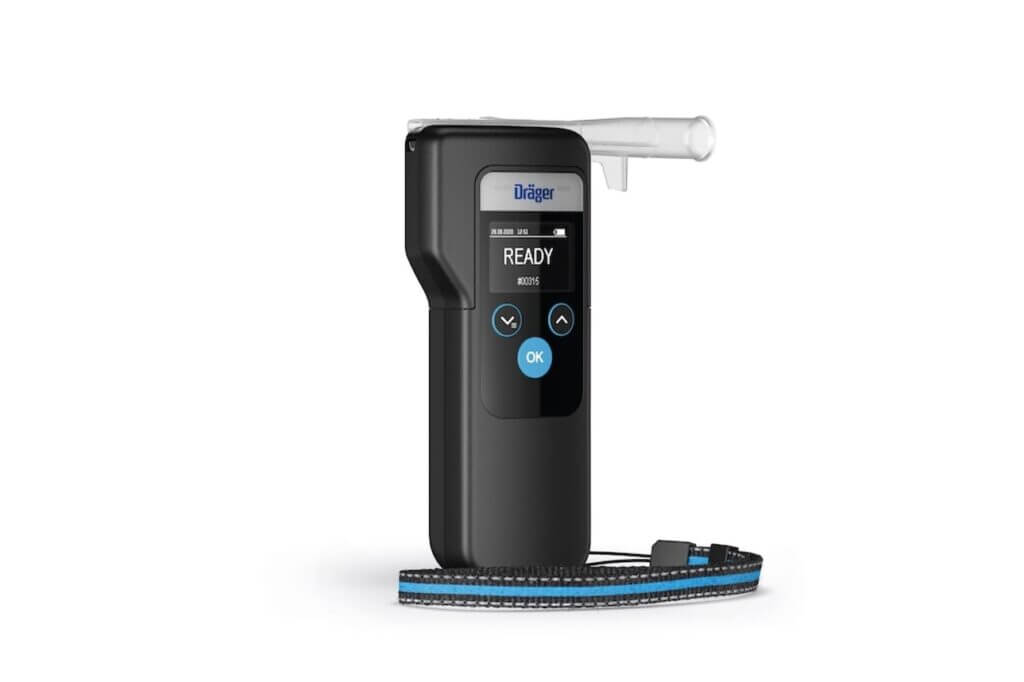

Dräger Alcotest® 6000

​The Dräger Alcotest® 6000 allows the professional user to perform a breath alcohol test with speed and precision.

The measuring technology of this small and user-friendly portable measuring device has already been proven worldwide and has been sold over 1,000,000 times.

Benefit

Breath alcohol testing made easy
The device is ready to use within seconds. This means that you can perform an (active) test on a subject at any time. It is also possible to measure alcohol in the ambient air (passive), in which case a mouthpiece isn‘t required. All functions required for a measurement are activated with the convenient blue OK button, while two menu buttons are used for navigation

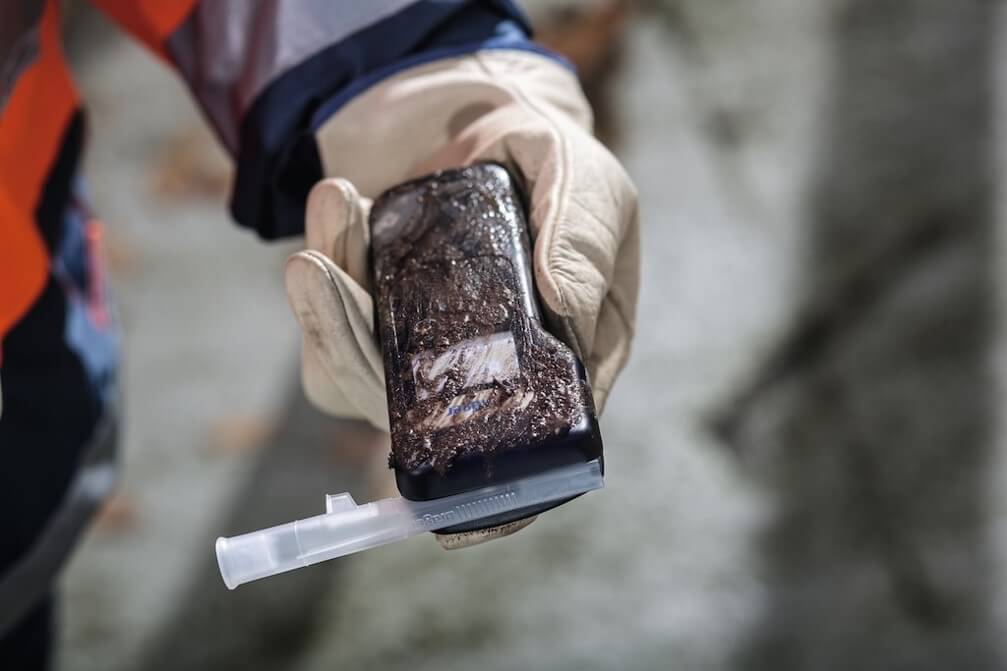

Versatile and tough
The tried and tested electro-chemical Dräger sensor in the Alcotest 6000 is distinguished by its very fast response times and a long service life. It operates with extreme precision and reliability. The analysis is reliable even at temperatures of -5 to +50 °C / 23 to 122 °F. The sensor also delivers reliable results quickly in case of a high alcohol content, for both active and passive measurements.

Convenient to use
Dealing with intoxicated people requires a high degree of attention and concentration. An intuative operation of the device is an important aspect for ease of use and smooth breath testing procedures. All measurement functions can be operated with just one button to make it easier for you to perform the test. The large back-lit display is easy to understand due to its full-text messages which guide you securely through the alcohol test. An LED and audible signal complement the display and indicate the end of a measurement process. Two menu buttons are used to navigate through the menu, enabling you to perform functions such as reviewing the last test results and optional printing.

Simply hygienic: the Slide‘n‘click mouthpiece
The sophisticated product design meets the requirements for performing the breath alcohol test quickly, easily and hygienically: The shape of the Slide‘n‘click mouthpiece allows you to intuitively fit it correctly, even in the dark. The Alcotest 6000 is ready to use again immediately after changing the mouthpiece. Furthermore, attempts at obstruction are consistently rejected by the device: The air outlet cannot be closed, foiling any attempts to manipulate the device when giving a breath sample. A spacer on the mouthpiece keeps the lips of the person being tested from coming into contact with the device’s housing. The spacer can also be used as a mouthpiece ejector if necessary. Mouthpieces with return valve are also available upon request.

Downloads

Drugs & Alcohol Brochure Product Datasheet Product IFU

Additional Information

APPLICATION Professional
SENSOR TECHNOLOGY Dräger Electrochemical Sensor / Fuel cell
DATA STORAGE 100 Tests
DATA READOUT VIA PC No
CHARGING OF RECHARGEABLE BATTERIES IN DEVICE No

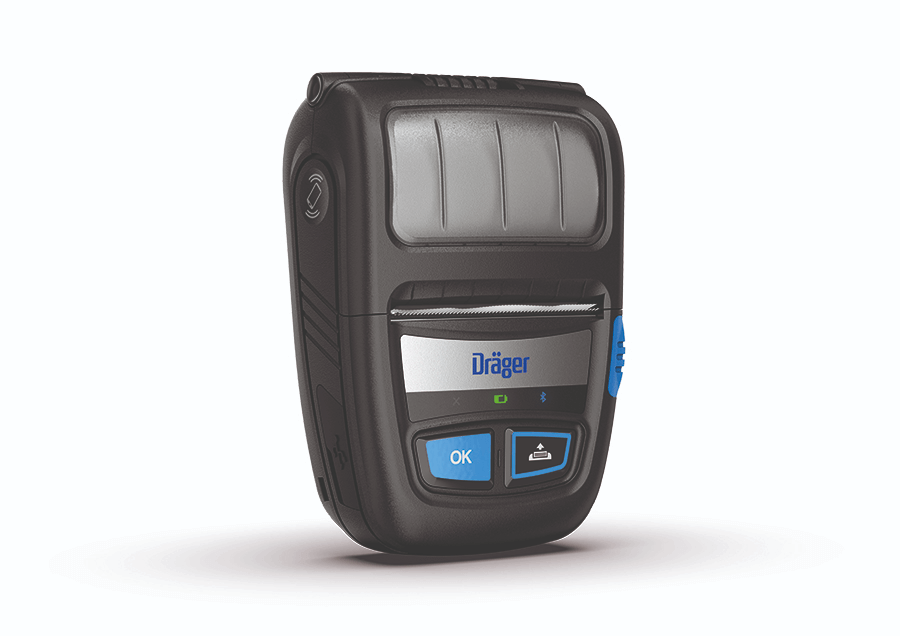

PRINT OPTION No
LANGUAGE CONVERSION BY CUSTOMER Yes
MEASURING RANGE up to 2.5 mg/L
DISPLAY Black / White

Technical Data

MEASURING RANGE up to 2.5 mg/L
OPERATING TEMPERATURE -5°C – 50°C
DISPLAY Black / White
CONNECTION PORT Micro USB
TYPE OF BATTERY 1xCR123A
NUMBER OF TESTS FROM FULL BATTERY 1500
PROTECTION CLASS IP54
CALIBRATION INTERVAL 6 months
START UP TIME 4 seconds
ANALYZE TIME AFTER TEST SAMPLE 3 to 25 seconds
RECOVERY TIME TO BE READY FOR NEXT TEST 20 to 120 seconds

Tests Modes

ACTIVE BREATH ALCOHOL TEST Yes
NON-CONTACT BREATH TEST No
PASSIVE BREATH ALCOHOL TEST Yes
DRÄGER ALCOTEST MOUTHPIECE Yes
DRÄGER ALCOTEST FUNNEL No
DISPLAYED RESULTS Alcohol concentration value will be shown

Approvals

CE SIGN Yes
EU POLICE APPROVAL (EN15964) Yes
EU PRIVATE USE APPROVAL (EN16280) No, not approved, because type of device cannot approved according approval
NHTSA EVIDENTIAL Yes
AUSTRALIA AS 3547:1997 Yes
GERMAN LLOYD No, not approved, because type of device cannot approved according approval
US COAST GUARD Yes
