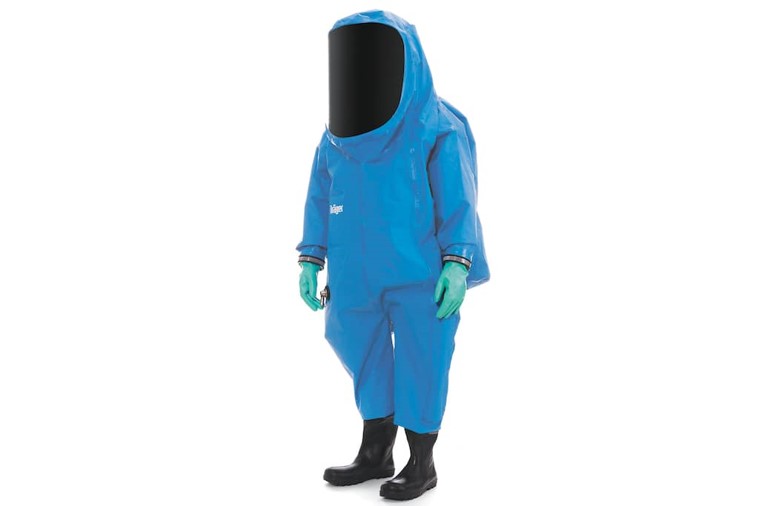

Dräger CPS 7900

The gas-tight Dräger CPS 7900 provides excellent protection against industrial chemicals, biological agents, and other toxic substances.

Its innovative material qualifies the CPS 7900 equally well for work in explosive areas and for handling cryogenic substances.

Benefit

Gas-tight suit

  • ​SCBA worn inside the protective suit
  • five suit sizes (S-XXL)
  • side zipper
  • suit material D-mex, reusable

Protection in a class of its own

The chemical protective suit Dräger CPS 7900 was developed to protect its wearer when handling toxic or hazardous materials and to provide much needed support for a variety of dangerous tasks. The suit material D-mex offers unique resistance to various substances as well excellent protection against mechanical effects, liquefied gases, and flash fires. The Dräger CPS 7900 meets and exceeds the requirements of international standards of fire departments, search and rescue organizations, and industry for reusable protection suits.
D-MEX: 5-Fold safety

The suit’s innovative and unique material D-mex consists of five layers. An especially sturdy elastomer layer as well as a barrier layer resistant to chemicals is on the inside as well as the outside. This allows the suit to retain its full protective capacity even when the material on the outside becomes damaged. Its electrostatic properties make it possible to use the suit in all explosive areas. If a spark occurs in spite of this remarkable fabric, the flame-retardant and self-extinguishing material protects its wearer from serious burns. The flexibility of D-mex even makes it possible to handle liquefied gases such as ammonia at a contact temperature of -80°C.
Outstanding wearing comfort

The chemical protective suit reduces the stress during the already difficult work in hazard zones and danger areas. With its new, ergonomic cut and five available sizes, the suit offers its wearers with a body height of 1.50 m to 2.10 m the highest degree of mobility during a wide variety of activities and tasks. Moreover, the clearly lighter weight and better drape of the suit material adjusts to the wearer’s movements and offers the full range of flexibility.
Ready at any time

Innovative materials and new service concepts made it possible to significantly reduce time and expenses for regular testing and expenses. In addition, the suit can be easily cleaned and disinfected. This means the time and expense spent over the 15 years of service life of the suit is much less.
Ready for the extraordinary

Accessories are available to customize the chemical protective suit to meet your specific needs and requirements, thereby expanding your range of application options. Including pressure gauge holder, height adjustment, anti-fog visor and D-Connect.
Never again gasping for a breath

Breathing air is a scarce commodity when it comes to runs involving toxic materials or hazardous atmospheres. The route to the deployment location and the decontamination location must be bridged. The actual tasks must be completed. This is followed by a careful decontamination so that suits can be removed. The amount of air available in a compressed air breathing apparatus often is insufficient to cover both activities. For this reason the suit can be equipped with optional pass thrush.

Additional Information

Key Facts

SIL Yes
Channels 1536
mA Yes
mV No
Digital communication Yes
Surface Mount No
DIN Rail Mount No
Dockingstation Yes

Technical Data

Power Supply 24 V DC
Temperature (operation) 0°C – 55°C
Humidity 5 to 90 % r.h., non-condensing
Pressure (hPa) 700 – 1300

Approvals

ATEX Yes
IECEx No
CE Yes
GOST (EAC) No
Performance approval Yes
Shipping approval Yes
UL No
CSA No
FM No
