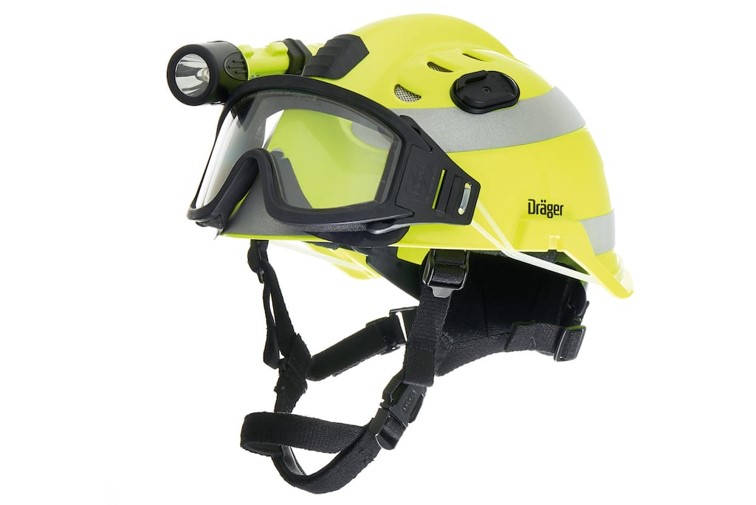

Dräger HPS 3500

The Dräger HPS® 3500 – a multifunctional and universal helmet.

Ideal for the diverse requirements of rescue teams during search and rescue, forest and bush fire fighting, traffic accidents, rescue from heights, water rescue and any kind of technical assistance.

Benefit

Robustness

 Technologically high quality materials offer optimum protection due to high mechanical durability – with very low weight. The extremely robust helmet shell in painted or mass dyed/unpainted version from high quality thermoplastic offers a high level of comprehensive head protection. With its modern design and construction the helmet is ideally suited for forest and large-scale fire fighting (EN 16471:2014), technical assistance (EN 16473:2014), rescue from heights (EN 12492:2012) and water rescue (EN 1385:2012).

Optimised wearing comfort

Excellent wearing comfort is achieved through the comfortable interior fitting with 4-point harness including padding of the entire head area. The chin strap is secured with a quick-release buckle and chin piece and can be easily adjusted using hook-and-loop fasteners. The adjusting wheel, which can also be easily reached and operated with gloves, allows adjustment for individual head sizes without having to remove the helmet.

Comfortable climate

The Dräger HPS 3500 features a ventilation system ensuring an optimum climate inside the helmet. To prevent water, sparks and metal chips from entering, it can be closed if necessary. The internal helmet components are made from skin-friendly materials which are anti-allergic, sweat-repellent and breathable.

Protective goggles

 The tight-fitting protective goggles from fire-resistant material supplied with the Dräger HPS 3500 set are approved in accordance with EN 166 and EN 14458. The frame of the goggles is made from polyurethane and combines ergonomic design with excellent wearing comfort. The protective goggles feature passive rear ventilation and are optimally protected against fogging and scratching by the modern, polycarbonate antiscratch double glazing (Pinlock®-system). The protective goggles can be adapted to the helmet using a silicone strap (included as standard with the HPS 3500 set) or optionally as separate protective goggles with adjustable elastic strap



Downloads

Product Datasheet Product Datasheet - Greek version Instructions for Use

Additional information

Key Facts

HEIGHT ADJUSTMENT Yes

Helmet

HELMET TYPE Half shell (Rescue type)
HELMET SIZE One-size-fits-all: 50-64 cm
WEIGHT (HELMET) 0.71 Kg
HELMET SHELL COLORS 13 colours

Interior design & harness

RETENTION SYSTEM/HARNESS 3-point harness with adjustable chin and neck straps
SUSPENSION SYSTEM Comfort net
HEIGHT ADJUSTMENT Yes

Face and eye protection

FACE GUARD PC, available in clear version, no coating
SPECIAL VISORS (OPTIONAL) ✓ Electro, Mesh
GOGGLE (OPTIONAL) Yes

Neck protectors (optional)

ARAMID & ALUMINIUM No
ARAMID SHORT No
ARAMID, DUTCH VER., 2-LAYER Yes
ARAMID, DUTCH VER., 3-LAYER No
ARAMID, BELGIUM VER., 4-LAYER No

Helmet lamps (optional)

FRONT LAMP, INTEGRATED Yes
SIDE LAMP, ATTACHED Yes

Helmet communication (optional)

INTEGRATED SOLUTION No
ATTACHED SOLUTION Yes

Customized marking & labelling (optional)

REFLECTIVE STRIPES front, side, back in different colours
REFLECTIVE DESIGN STRIPES No
RANK MARKING Yes
CUSTOMER LOGO ON FRONT No
CUSTOMIZED WRITING No

Helmet & breathing protection

COMPATIBLE WITH STANRD. MASK Yes
COMBINATION WITH DRÄGER Yes

Cleaning

MANUAL CLEANING Yes
MACHINE CLEANING, TUMBLE No
MACHINE CLEANING, SPRAY-NOZZLE No

Approvals

EN 443:2008 No
DIN 58610:2014 No
EN 16471:2014 Yes
EN 16473:2014 Yes
SOLAS AND MED No
EN 12492:2012 Yes
EN 1385:2012 Yes
