Dräger HPS® 4500

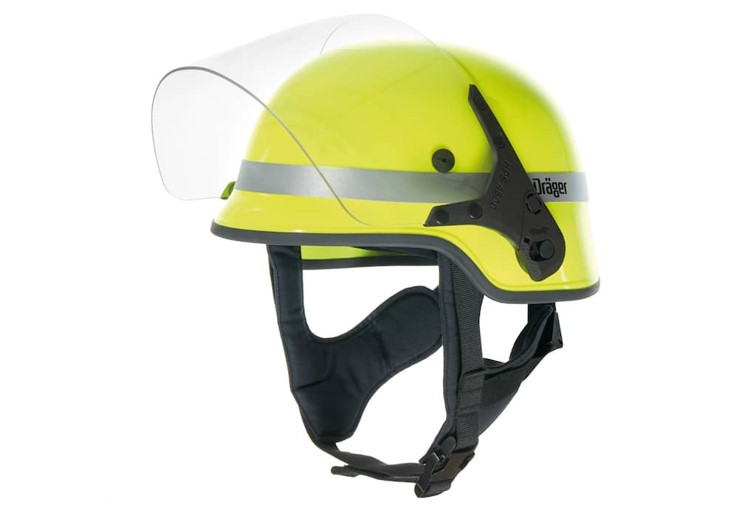

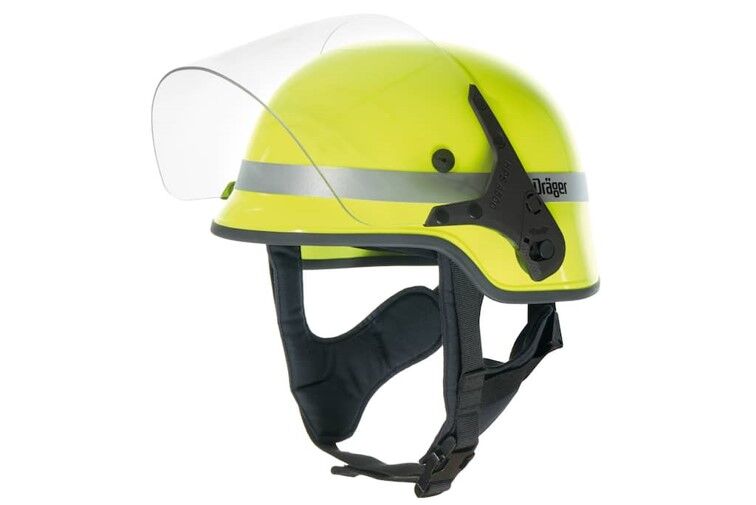

The Dräger HPS® 4500 is a traditional half-shell helmet with a modern design.

Its robust outer shell provides you with excellent protection against impact and extreme heat. With a modern visor design, the helmet has superior wearer comfort due to ergonomic and lightweight internal components. A comprehensive range of accessories make our solution a truly versatile helmet across a variety of applications.

Benefit

Hard shell

The outer shell is characterised by a robust and resistant design. The combination of high-temperature-resistant Duroplast and latest aramid fabrics protects you both against falling debris and the heat of naked flames. The outer shell, pressed using a special method (SMC* method) provides the HPS® 4500 with exceptional stability. At the same time it is one of the lightest helmets of its class and meets the requirements of the new standard EN 443:2008 – type A (half shell).

High wearing comfort and easy operation

The HPS 4500 features modern and comfortable internal helmet components. The 4-point harness can be adjusted both in the neck area as well as in the temple area via a simple tensioning system. The convenient adjusting wheel allows you to adjust the fit of the helmet even with thick gloves. The integrated hair net allows for height adjustment, and at the same time, ensures a comfortable cool climate inside the helmet. The harness made of fire-resistant Nomex®/aramid fabric and the sweatband made of eco-leather are washable using common detergents.

Heat and scratch resistant visor

The large visor of the HPS 4500 reaches down to the chin area. It is made of thermally high-resistant Polyphenylsulfon material and therefore suitable for interior fire fighting. The visor is approved according to EN 14458 and classified as “face guard”. Therefore the visor provides the greatest possible protection without any interfere in your field of vision. The visor has anti-scratch coating on both sides.

Comprehensive accessories for every challenge.

Dräger offers you a wide range of accessories for the most varied applications during fire fighting. You can optimize and individualize your helmet to these various challenges by choosing between numerous versions of neck guards, face protections, helmet lamps and communication systems – all of which can be quickly and easily attached to the HPS 4500.



Additional information

Key Facts

HEIGHT ADJUSTMENT Yes

Helmet

HELMET TYPE Half shell helmet (Type A3b)
HELMET SIZE Two sizes: 48-61 or 56-64 cm
WEIGHT (HELMET) 1 Kg
HELMET SHELL COLORS 6 colours (including dual-function colour)

Interior design & harness

RETENTION SYSTEM/HARNESS 4-point harness with adjustable chin and neck straps, padded
SUSPENSION SYSTEM Comfort net
HEIGHT ADJUSTMENT Yes

Face and eye protection

FACE GUARD PPSU or PC, available in clear version with AS/AS coating

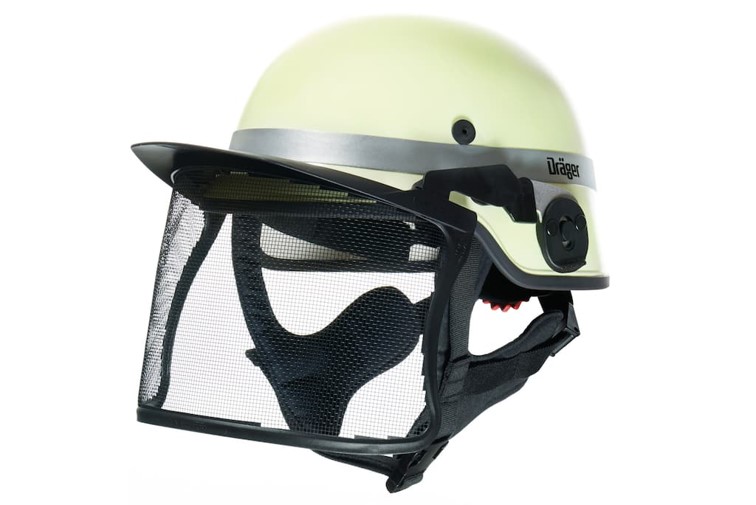

SPECIAL VISORS (OPTIONAL) ✓ Electro, Mesh
GOGGLE (OPTIONAL) Yes

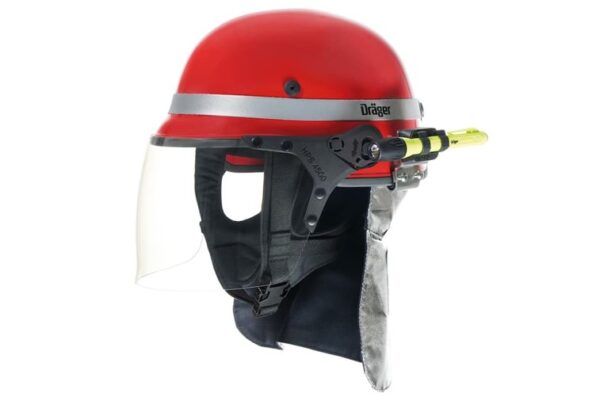

Neck protectors (optional)

ARAMID & ALUMINIUM Yes
ARAMID SHORT Yes
ARAMID, DUTCH VER., 2-LAYER No
ARAMID, DUTCH VER., 3-LAYER No
ARAMID, BELGIUM VER., 4-LAYER Yes

Helmet lamps (optional)

FRONT LAMP, INTEGRATED No
SIDE LAMP, ATTACHED Yes

Helmet communication (optional)

INTEGRATED SOLUTION No
ATTACHED SOLUTION Yes

Customized marking & labelling (optional)

REFLECTIVE STRIPES complete around, silver
REFLECTIVE DESIGN STRIPES No
RANK MARKING Yes
CUSTOMER LOGO ON FRONT No
CUSTOMIZED WRITING No

Helmet & breathing protection

COMPATIBLE WITH STANRD. MASK Yes
COMBINATION WITH DRÄGER No

Cleaning

MANUAL CLEANING Yes
MACHINE CLEANING, TUMBLE Yes
MACHINE CLEANING, SPRAY-NOZZLE No

Approvals

EN 443:2008 Yes
DIN 58610:2014 No
EN 16471:2014 No
EN 16473:2014 No
SOLAS AND MED Yes
EN 12492:2012 No
EN 1385:2012 No

Downloads

Product Datasheet
