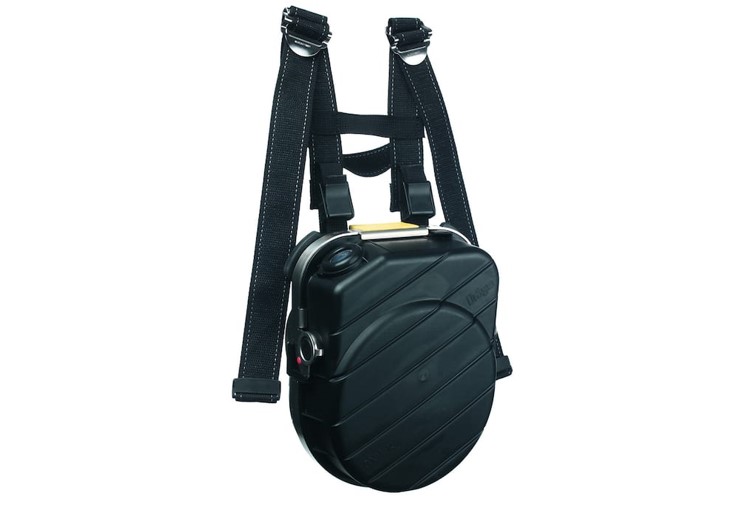

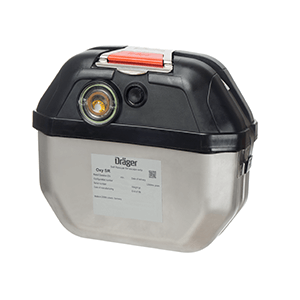

Dräger Oxy K 30 S/HW/HS

​Dräger Oxy K 30 is a series of oxygen self rescuers available as hood or mouthpiece version.

It should be carried when toxic gases can be present or the atmosphere can be oxygen deficient.



Benefit

Low maintenance

 If the Oxy K 30 S/HW/HS is stored, no maintenance and servicing is required for a time period of up to ten years.

Easy and convenient to open and put on

The Oxy K 30 S/HW/HS is easy to operate. The housing can easily be opened, put on and positioned as required. The Oxy K 30 S is equipped with a mouthpiece, nose clip and protective googles whereas the Oxy K HW/HS features an escape hood.

Protective hood (Oxy K 30 HW/HS)

 The hood provides protection for your head, face and eyes against smoke, heat and sparks. It is optimally designed for wearers of glasses, without limiting the field of vision. In addition, the hood allows for good communication, which is highly important in emergencies.

Tested and approved

 The devices are approved according to DIN EN 13794. The hood version Oxy K 30 HW/HS is also approved according to DIN 58639, Solas and MED. The complete Oxy K 30 series is applicable for use up to temperature class 4.

Operational readiness displayed by indicator

By means of the coloring of the service indicator, the user recognizes at a glance whether the device is ready-to-use. The Oxy K 30 works on the basis of chemically bound oxygen and can be used for 30 minutes.

Immediate oxygen supply

 Due to the quick-start mechanism, oxygen is immediately supplied to the wearer.

Training devices

 Devices are available for training purposes in order to be perfectly prepared for cases of emergency



Additional information

Key Facts

Product Type Oxygen self-rescuer
Protection against Suddenly occurring toxic gases and/or lack of oxygen
Escape time 30 minutes
Service life 10 years
Weight (during use) 2.8 Kg
Temperature class according T4

Carrying options

Wall holder ✓ (Oxy K 30 HW)
Shoulder strap ✓ (Oxy K 30 HW)
Hand strap No

Features

Device configuration Escape hood
Included eye protection Yes
Abrasion protection No
Training unit available Yes

Approvals

GOST No
DIN EN 13794 No
DIN 58639 Yes
MED SOLAS Yes
AS/NZS 1716:2003 No
SANS 10338:2009 No
India Standard (15803:2008) No
Brasil CA No. 39.858 No

Downloads

Product Datasheet
