Dräger PARAT® 3100

The Dräger PARAT® 3100 is a half mask escape device equipped with a multi-gas ABEK15 filter.

Packed in a robust and ergonomic case, the unit is compact and easy to carry. Approved to the only recognized standard for filtering industrial escape devices (DIN 58647-7), it provides users a minimum of 15 minutes escape time.

Benefit

Proven protection for at least 15 minutes

The Dräger PARAT 3100 reliably protects the user from a wide range of toxic industrial gases for at least 15 minutes. It is approved in accordance with DIN 58647-7.

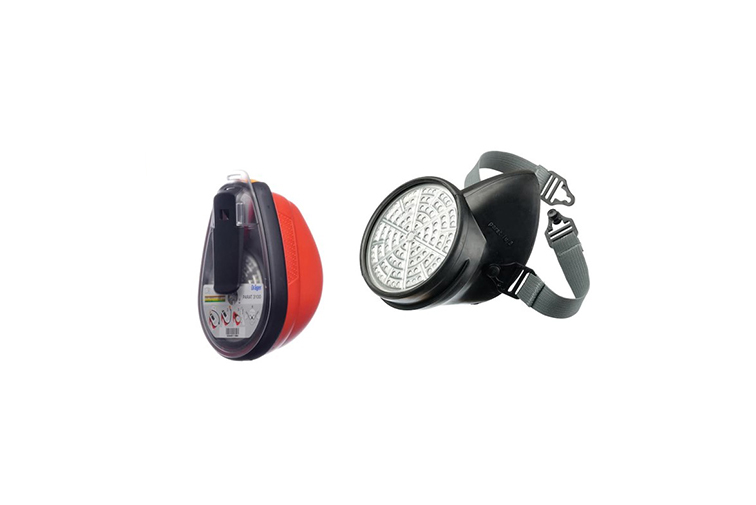

Half mask with 2-point harness

The escape device consists of a half mask with 2-point harness and an integrated ABEK15 filter. The half mask can easily be donned, which is especially important in an emergency situation. Additionally, it allows for reliable communication.

Various carrying options

The escape device is standardly equipped with a belt clip. There are four additional carrying options available: a grip clip, slip guard carabiner, shoulder strap and hand strap, keeping the PARAT 3000 series secure during daily tasks. With the exception of the grip clip, the devices can be attached together with the existing belt clip. The grip clip can be assembled after removing the belt clip from the unit.

Robust and ergonomic packaging

The ergonomic design with traction grip areas on the housing allows for easy and safe handling. The robust case provides stability and protection even under extreme working conditions.

Transparent backplate

The backplate of the PARAT 3100 is transparent and offers a clear view of the device. Service intervals are easy to keep track of as the expiration date is printed on the filter and can be easily read. Pictograms show the correct donning procedure and remain protected under the backplate against abrasion.

Low cost of ownership

The device has a 12 year overall lifetime provided that the filter is replaced every 4 years, ensuring minimal operational costs.

Additional Information

Key Facts

Product Type Escape device with half mask
Protection against Industrial gases and vapours
Escape time min. 15 minutes
Filter type ABEK-15
Lifetime 12 years (filter exchange required every 4 years)
Packaging options Plastic housing

Technical Data

Weight 0.36 Kg

Packaging and carrying options

Wall mounting No

Carrying options

Wall mounting No
Shoulder strap Yes
Hand strap Yes
Hip strap No
Belt clip Yes
Grip clip No
D-Ring No
Carrying case No
Slip guard carabiner Yes

Features

Eye protection No
Filter expiry date Yes
Training unit Yes

Approvals

EN 137:2006 (Type 2) No
DIN 58647-7 Yes
EN 14387:2004 (only filter) No
NIOSH 42 CFR Part 84 No

Downloads

Product Datasheet Donning
