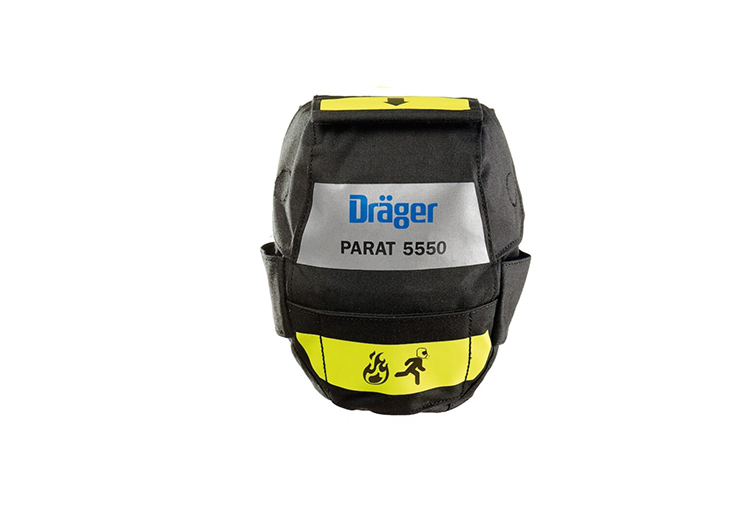

Dräger PARAT® 5550

The Dräger PARAT® 5550 is a fire escape hood packaged in a flame-retardant holster. It was specifically developed for fire rescue teams for use in victim rescue. The main advantage: The PARAT® 5550 is system approved together with Dräger breathing apparatus according to EN 137:2006, Type 2.

Benefit

”Ready to act” increases safety

With its EN 137:2006, Type 2 and EN 403:2004 approved combination of breathing apparatus, fire escape hood and holster, Dräger is going one step further in victim rescue. The fire escape hood can be carried along (e.g. on the breathing apparatus) without restricting the rescuer’s freedom of movement. When it is needed, it is there. The fast deployment of the Dräger PARAT 5550 contributes to the safety of the person being rescued.

Always available, always ready

As it is not always clear in advance whether or not people are inside the scene of the incident, it is recommended to carry a fire escape hood at all times. For at least 15 minutes, a fire escape hood protects against highly toxic fire-related gases, like CO, as well as vapors and particles. Carried at all times, the PARAT 5550 can also save lives in a respiratory protection emergency, for example in the event of a disconnected air supply.

Easy opening, intuitive use

The Dräger PARAT 5550 system solution keeps carrying, opening and donning the fire escape hood simple: The wearer opens the holster, removes the foil pouch containing the escape hood, opens it along the perforation — with ease, even when wearing gloves — and helps the person being rescued to don it. A clearly visible pictogram further illustrates the donning procedure.

More than just an accessory

With its reflective stripes, the holster is clearly visible from a distance. The material used is suitable for cleaning in washing machines. The inner label can also be used for personalization, meaning that the holster can be marked with an individual’s identification. The holster can be attached to the breathing apparatus using the integrated belt loop with emergency release or the approved accessories like the shoulder harness or the carabiner hook. Optional accessory pockets (small and large) for further equipment like wedges or loops can be ordered separately.

Cost efficiency through long service life

The PARAT 5550 has an eight year service life time and the filter is well protected through the filter plugs during this time. So it is uncritical if the unit is stored for some time before use. The filter expiration date is visible from the outside of the foil pouch enabling cost-effective maintenance. Due to the filter plugs, the product can still be used in the event the foil pouch is punctured.

Additional Information

Key Facts

Product Type Escape hood in a flame-retardant holster
Protection against Fire gases, vapours and particles
Filter type CO P2
Lifetime 16 years (filter exchange required after 8 years)
Packaging options flame-retardant holster

Technical Data

Weight 0.71 Kg

Packaging and carrying options

Wall mounting No

Carrying options

Wall mounting No
Shoulder strap Yes
Hand strap No
Hip strap Yes
Belt clip No
Grip clip No
D-Ring No
Carrying case No
Slip guard carabiner Yes

Features

Eye protection Yes
Filter expiry date Yes
Training unit Yes

Approvals

EN 137:2006 (Type 2) Yes
DIN 58647-7 Yes, tested for use against H2S (at 2.500 ppm)
EN 14387:2004 (only filter) No
NIOSH 42 CFR Part 84 No

Downloads

Product Datasheet  Third-party rescue using the PARAT® 4700/5500/7500
