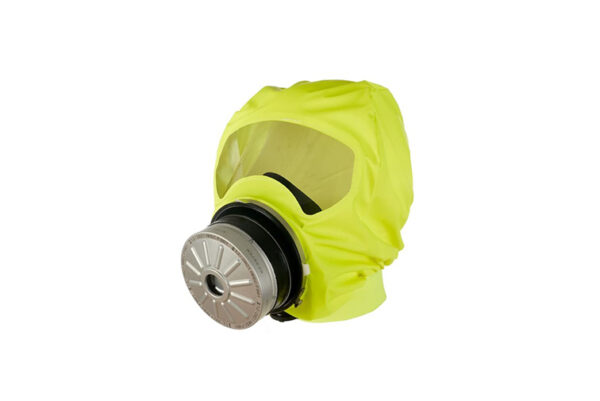

Dräger PARAT® 7500

The combined fire and industrial escape hood Dräger PARAT® 7500 was developed with users, placing the focus on the fastest possible escape.

Optimized operation and wearing comfort, a robust housing and a tested ABEK CO P3 filter ensure protection from toxic industrial and fire-related gases, vapours and particles for at least 15 minutes.

Benefit

Ready for escape in only 3 steps

 Exceptionally innovative and intuitive: When opening the packaging, the filter plug is automatically released from the filter. The filter is then deployed into operational position and the hood can be immediately donned. Thanks to the self-adjusting internal head harness, no additional adjustment is required. All you have to do is open the packaging, remove and don the hood—and leave the danger zone.

Reliable protection

The high-performance combination filter reliably protects against a wide range of fire and toxic industrial gases, vapours and particles. The ABEK CO P3 Filter is approved according to the EN standard 403:2004 for fire escape hoods, the DIN standard 58647-7 for filtering escape devices and is tested in accordance with the EN standard 14387:2004 for gas filter(s) and combined filter(s). In addition, the filter is tightly sealed with two filter plugs keeping it safe over its long lifetime.

16 years of service life

Replacing the filter after 8 years will extend the service life of the Dräger PARAT Escape Hood to 16 years in total. For this, Dräger offers filter replacement service or expert training for your employees.

Robust and ergonomic

 Both, ergonomics and wearing comfort were considered when designing the packaging of the Dräger PARAT Escape Hoods. The escape hood can be carried with a belt, shoulder strap, grip clip or belt clip. The PARAT Hard Case can also be mounted on the wall using a wall holder. Additionally, the robust packaging of the Dräger PARAT Escape Hoods protects the device from damage.

Different packaging types

 You can select between two packaging types: The Hard Case provides splash water protection (IP54)—the Soft Pack provides dust protection (IP5). Both packaging types have a viewing window to check the filter expiration date and the condition of the device. Particularly convenient: The security seal on the packaging shows if the unit has been opened

Additional Information

Key Facts

Product Type Industrial and fire escape hood
Protection against Industrial and fire gases, vapours and particles
Filter type ABEK CO P3
Lifetime 16 years (filter exchange required after 8 years)
Packaging options Soft Pack (dust protection IP5); Hard Case (splash water protection IP54)

Technical Data

Weight 0.83 Kg

Packaging and carrying options

Wall mounting ✓ (Hard Case only)

Carrying options

Wall mounting ✓ (Hard Case only)
Shoulder strap Yes
Hand strap No
Hip strap Yes
Belt clip Yes
Grip clip Yes
D-Ring Yes
Carrying case No
Slip guard carabiner No

Features

Eye protection Yes
Filter expiry date Yes
Training unit Yes

Approvals

EN 137:2006 (Type 2) No
DIN 58647-7 Yes
EN 14387:2004 (only filter) Yes
NIOSH 42 CFR Part 84 No

Downloads

Product Datasheet Third-party rescue using the PARAT® 4700/5500/7500
