Benefit
Increased freedom of movement

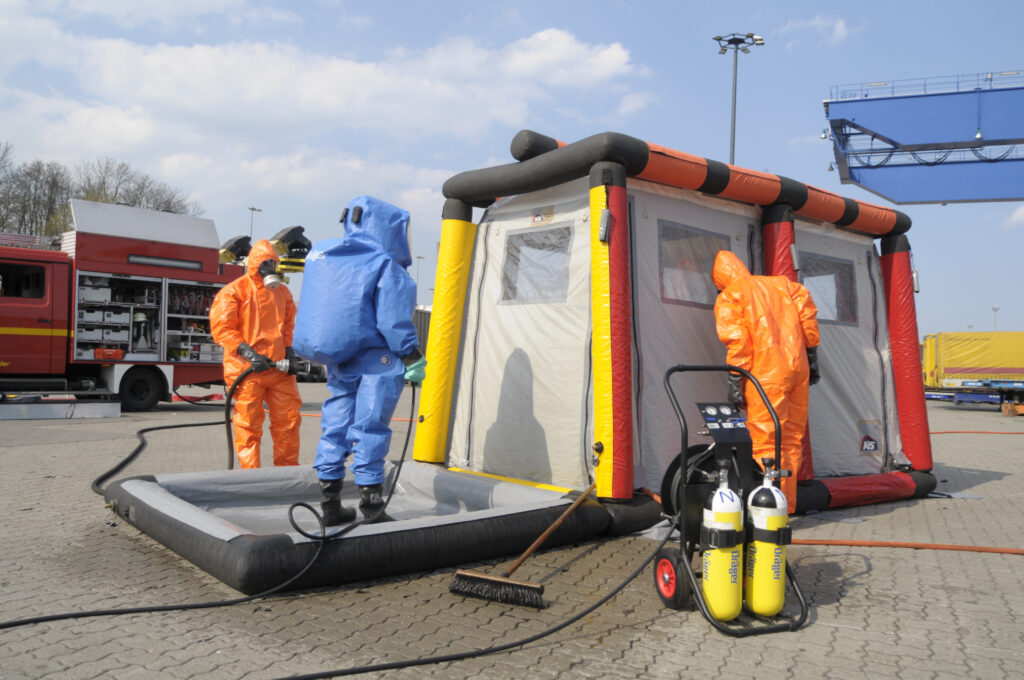

Uninterrupted air supply is provided by the trolley-mounted cylinder(s) to the wearer via a hose reel. As the PAS AirPack can be easily re-located and therefore positioned in a safe zone which is in close proximity to working area, the user need only wear a lightweight harness, such as Dräger’s PAS Colt, during operation. This allows the wearer a greater freedom of movement, and less stress and fatigue than they would be subjected to if wearing a conventional self-contained breathing apparatus unit.
A well thought trough system

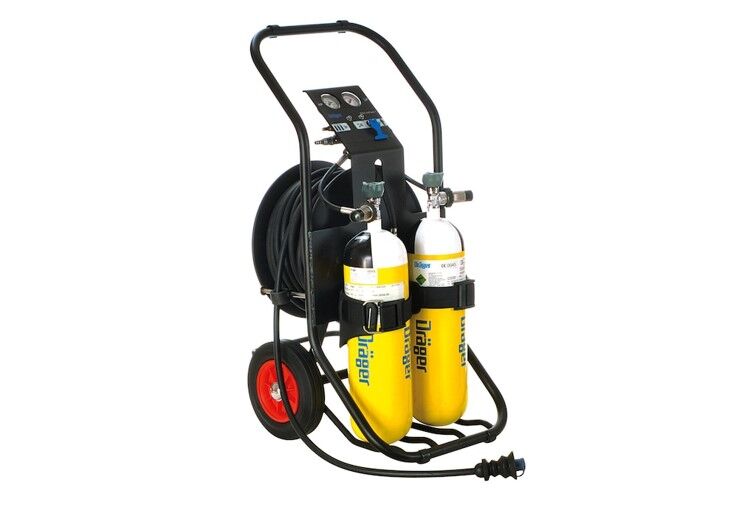

The Dräger PAS AirPack 1 is able to accommodate up to four compressed air cylinders of up to 12 litres in capacity and is constructed from an anti-static powder coated steel material. A 50 metre length of hose is supplied with the PAS AirPack 1 as standard, this can be extended to a length of 100 metres with a range of extension hoses.
The trolley hose reel connector is protected with a cover to minimise inadvertent damage being caused. The hose reel is equipped with a winding handle to allow the hose to be easily re-wound onto the reel after use. Outgoing hose distribution is also controlled with a braking system in order to prevent unnecessary unwinding and potential entanglement.
The Dräger PAS AirPack 1 benefits from the world renowned, tried and tested, pneumatics system used on Dräger’s successful PSS range of compressed air breathing apparatus. The system incorporates a safety pressure relief valve and the pressure reducer is shrouded in a protective plate for additional safety. The PAS AirPack has been ergonomically designed to facilitate ease of operation, general handling and mobility.
The Module comprises of:
‒ Robust welded durable steel frame coated, for corrosion protection, with a tough black anti-static polymeric powder coating.
‒ Stainless steel fittings.
Pneumatics
The Dräger PAS AirPack 1 Trolley module incorporates the following pneumatic elements;
‒ Pressure reducer suitable for connecting breathable quality air at an input pressure of either 200 or 300 bar.
‒ Pressure reducer suitable for supplying breathable quality air at an outlet medium pressure of 8 bar nominal. (6 to 10 bar)
