Benefit
Telemetry – For precise monitoring of breathing apparatus wearers
The PSS Merlin System offers the choice of using two versatile versions. Firstly, you can use the PSS Merlin Entry Control Board, the Dräger Bodyguard 7000 or Bodyguard II electronic monitoring unit and the ATEX approved PSS Merlin Modem.
Secondly, the system can be used with the Dräger PSS Merlin Software as opposed to the Entry Control Board. The Software, when used with the PSS Merlin PC Modem, offers additional benefits.

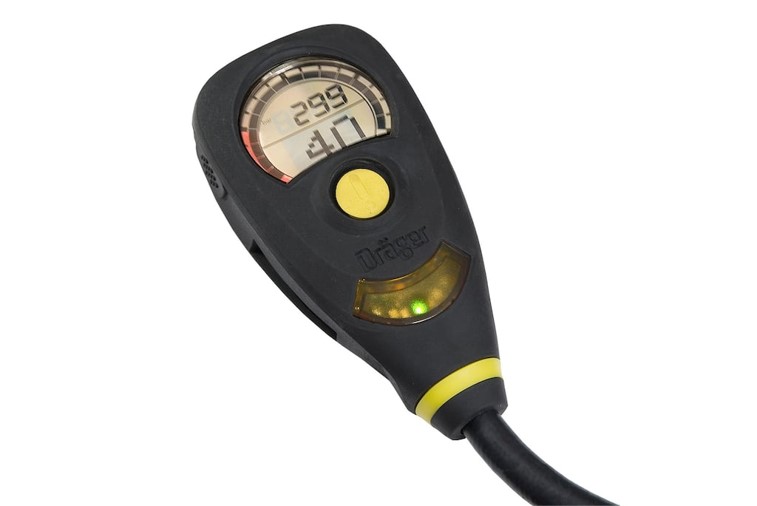

By using the PSS Merlin Modem, the latest information will be sent from the Bodyguard 7000 or Bodyguard II to the PSS Merlin Software or Entry Control Board, meaning that the incident commander is given real time information of the breathing apparatus wearer, enabling a prompt response in case of emergency situation.
Life critical information in real time
There is a two way communication between the wearer and the incident commander. Transmitted from the breathing apparatus wearer is the following data:
‒ Manual distress signal
‒ Automatic distress signal
‒ Cylinder pressure
‒ Time to whistle
‒ Elapsed time
‒ Withdrawal and evacuation signal
‒ Acknowledgment of global or individual evacuation signal
Via the Software or Entry Control Board, the incident commander is able to
‒ send individual or team evacuation
‒ acknowledge breathing apparatus wearer’s distress signals, automatic distress signals and withdrawal signals
Automatic activation and logging in

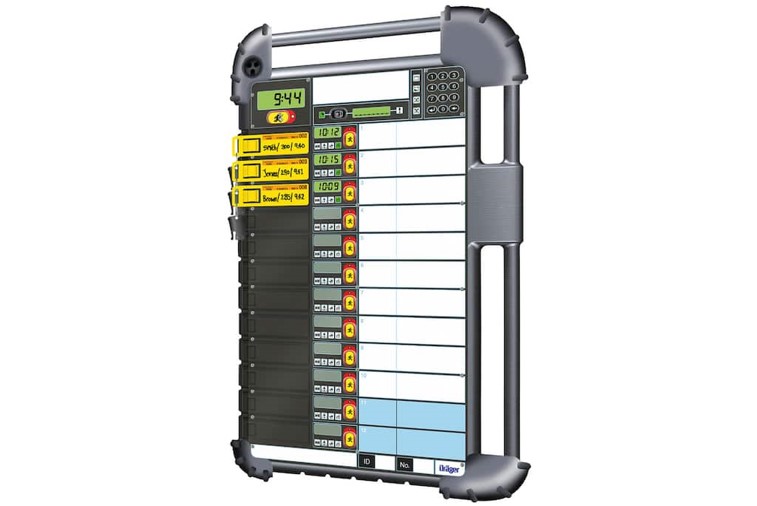

For enhanced usability: When opening the cylinder valve, the system switches on both the Bodyguard 7000 and the PSS Merlin Modem. The PSS Merlin Entry Control Board is activated by the insertion of a tally key. The identity of the PSS Merlin Modem is read and a unique connection is established between radio and board. The system continuously monitors the status of the connection. When used with the Dräger PSS Merlin Software and the PSS Merlin PC Modem, it is even possible to log on the breathing apparatus automatically – without the need for insertion of a tally key.
It is however still possible to establish the connection by a tally, if required. Personalization of the breathing apparatus can also be undertaken, enabling for easy documentation and transparency for tracking its usage. Benefits Dräger PSS®

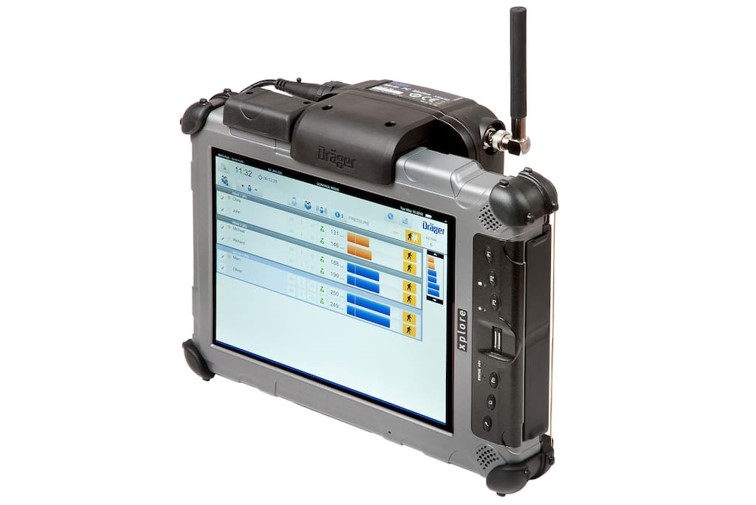

Securely controlling the incident – Intuitive Merlin Software

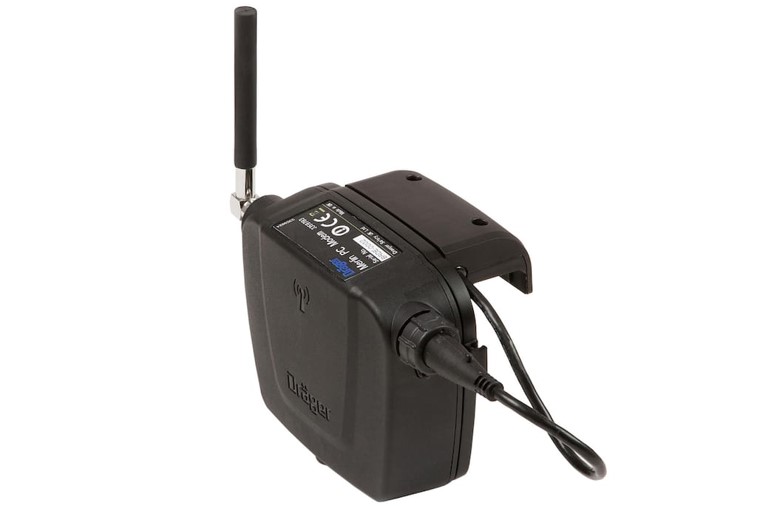

When using the PSS Merlin Software, the PSS Merlin Entry Control Board is not required. The PSS Merlin PC Modem communicates directly with the wearers’ PSS Merlin Modems. Even non-telemetry users can be displayed by entering a time to whistle countdown in the Software. Thanks to a weatherproof USB port, the robust and IP 65 rated PSS Merlin PC Modem does not require an additional power supply. In order to avoid loss of data, the system offers a three-way back-up: The PC Modem, the Software and an optional, external memory always save the latest status of the persons being logged on – no data will be lost. When using the overview mode, an incident commander can gather the information from several, independent entry control points. Analysis of this data gives a comprehensive picture to aid further decision making. A training mode gives users the ability to train in the operation of the software and carry out realistic incident simulations. Post incident, the data collected can be documented in a report whichit is then also possible to load intothe fire brigade administration software Drägerware.ZMS/fire.
Increased wearer comfort, maximum freedom of movement
The PSS Merlin Modem is designed to fit perfectly onto the backplate of Dräger PSS 5000 and PSS 7000 series breathing apparatus. It is located centrally between the backplate and the cylinder resulting in a seamless integration with the ergonomic carrying system. The compact design decreases snagging risks; the clear waist belt allows more freedom of movement. As the PSS Merlin Modem is directly connected to the central electronics of the Bodyguard 7000, there is only need for a single recharge-able battery to supply power to both the Bodyguard 7000 and PSS Merlin Modem. This simplifies the battery logistics and charging process.
Increased charging efficency – even in trucks
In order to save valuable time with battery logistics, in-cab chargers are available for both the PSS Merlin Modem and the PSS Merlin Entry Control Board. The batteries are re-charged easily and effectively, whilst inside the fire truck.
For users who wish to maintain battery packs off the breathing apparatus, Dräger has developed a bench system which allows up to 4 battery packs to be charged simultaneously. Uniquely, this charger can also perform a health check on each pack. Simply insert the battery into the charger – the rest is automatically carried out by the charging station.
Increased safety during the incident
‒ Vital information at one glance outside of danger zone
‒ Sending distress signals
‒ Acknowledgement of distress signals
‒ Integrated incident reporting
‒ Simple accountability with Dräger PSS Merlin Software
