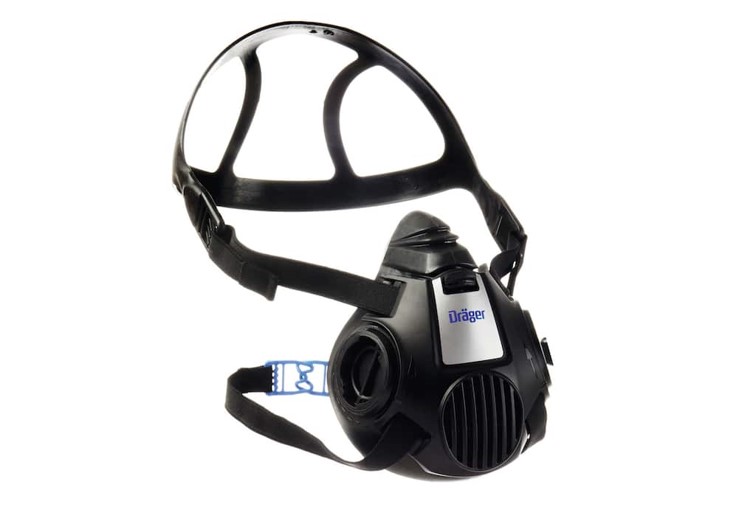

Dräger X-plore® 3300/3500

Dräger X-plore 3300 half mask or Dräger X-plore 3500 is ​a perfect combination: modern design and light weight offer you extra protection and comfort.

Benefit

Twin-filter half-face mask
‒ Dräger specific bayonet connection (twin-filter system)

‒ mask body made from Soft-TPE or DrägerFlex material (silicon free)

‒ to be used with X-plore Bayonet filters

Comfortable: easy respiration with low resistance
The innovative design of the respiratory protection masks ensures easy, comfortable breathing. A large opening on the exhalation valve keeps resistance low. The cascade-shaped nose bridge offers optimal distribution of pressure. The material of the masks also makes them comfortable to wear: the X-plore 3500 mask is particularly soft and skin-friendly because it is made of DrägerFlex material. First-class comfort is combined with exceptional durability.

Well-fitting: optimal fit for any face
The positioning of the filters on the sides and the flat design of the masks provide maximum field of view and a secure fit, even when worn with a protective visor. The Dräger FlexiFit head straps provide additional comfort. Thanks to the soft materials and ergonomic shape, the mask is a perfect fit for nearly any wearer. Even under a helmet, the head strap is hardly noticeable. Its innovative design makes it easy to don and doff without getting tangled in the wearer’s hair. The special mask straps with their criss-cross pattern are simple to adjust, ensuring optimal distribution of weight and pressure, so the mask is even more comfortable. Plus, there are three sizes to choose from (S, M, L) to make sure the masks are always an optimal fit.

Safe: innovative product features ensure optimal safety
Dräger half masks are valued for their precision design which offers optimal protection. For example, the cascade shape of the valve creates an extra powerful seal. The specially designed, flexible nose bridge ensures an extra secure fit that contours perfectly to the face, even when worn with protective eyewear. The Dräger X-plore 3300 and 3500 are equipped with two bayonet connectors on the sides for combination with the extensive Dräger X-plore bayonet filter series. These also provide a high level of safety: both filters are so simple to attach, it is practically impossible to mount them incorrectly.

Simple: improved product design for easy handling
Both masks are made of as few parts as possible. The advantage of this is fast, easy cleaning. No special training is required, either to use the respiratory protection masks or to (dis)assemble them. The Dräger X-plore 3500 also features a drop-down strap design. Thanks to this, the mask can be removed simply by releasing the fastener at the neck (without having to remove the helmet first, for example). When the mask is in the standby position, its inner side remains aligned with the body, protecting it from soiling.

The perfect set for any job
We offer three pre-packaged sets including X-plore 3000 half masks and two filters, giving you everything you need for your job. For work in dusty environments, we recommend our construction set. The chemical works set is suitable for working with chemicals, vapours and various particles when performing tasks such as collecting samples, mixing substances or cleaning. For working with paints or varnishes, as well as cleaning or preparing surfaces with organic chemicals and liquid or solid particles, our painter set is your choice.

Downloads

Product Datasheet Filter Selection Guide Guide for selection and use of filtering devices Product Datasheet - Greek version

Additional Information

REUSABLE (MASK ONLY) Yes
FILTER CONNECTION Dräger-specific bayonet
FILTER POSITIONING Lateral
CORRESPONDING BREATHING Dräger X-plore bayonet filters
SIZES S, M, L
WEIGHT (MASK ONLY, APPROX.) 0.21 lb

Key Facts

APPLICATION Handling of dusts and/or gases and vapours
PRODUCT TYPE Twin-filter half mask
PROTECTION AGAINST Particles, gases, vapours – depending on the breathing filter used

Materials

MASK BODY X-plore 3300: Soft-TPE (skin-friendly, lightweight); X-plore 3500: DrägerFlex TPE (skin-friendly, comfortable, hypoallergenic)
HAD HARNESS FlexiFit (soft and ergonomical)
HEAD STRAPS Textile strap

Features

DROP-DOWN OPTION ✓ (only X-plore 3500)
STORAGE ACCESSORY Reusable bag included
PRECONFIGURED SETS Chemical work set; Painter set; Construction set

Approvals

CE SIGN ✓ (EN 140)
AS/NZS Yes
NIOSH Yes
