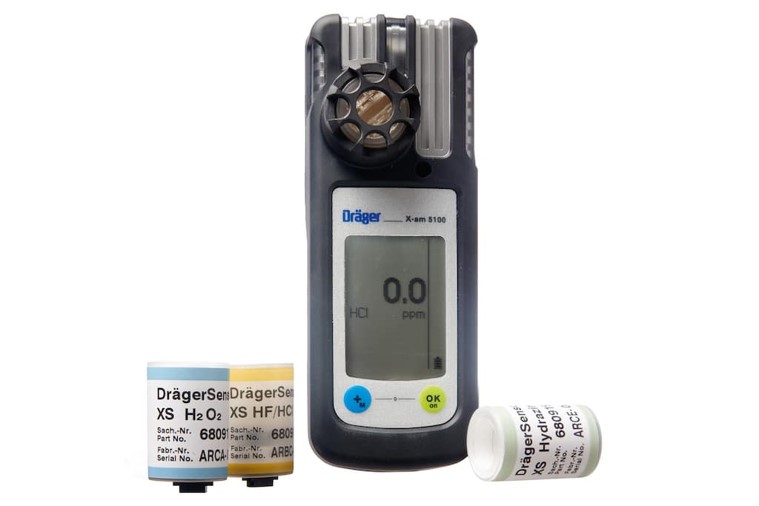

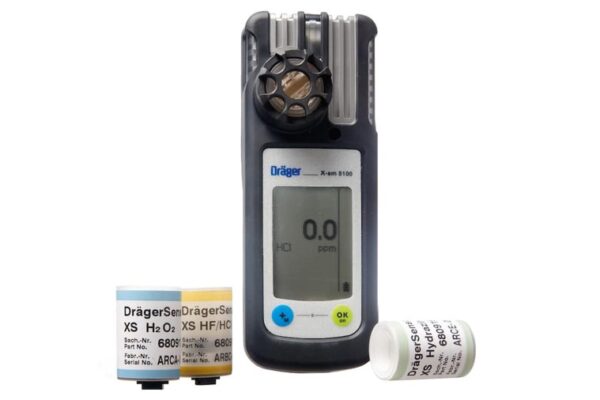

Single Gas Detector – Dräger X-am® 5100

For manufacturing petrochemical products, aseptic packing, or handling of rocket fuel.

The Dräger X-am 5100 portable single-gas detector ensures safe handling of HF, HCl, H2O2 or hydrazine – thanks to proven Dräger sensor technology and a device design which is perfectly customized to reactive gases.

Benefit

Single-gas detector

  • ​for personal air monitoring
  • Detection of HF, HCl, H2O2 or hydrazine

Your advantages at a glance

  • Continuous, precise and reliable measurement
  • A special device design with direct gas entry provides fast sensor response and precise measurement data by preventing gas adsorption on the device housing
  • Lightweight and robust
  • Slip-proof and compact design
  • Triple alarm: visual (360°), audible (multi-tone), vibration
  • Easy to use: two-button operation and user-friendly menus
  • Highly resistant to impacts, vibrations and electromagnetic radiation
  • Can be operated using replaceable alkaline batteries or a T4 NiMH rechargeable battery, which can be charged right in the device

Additional information

Key Facts

Application Personal Air Monitoring
Temperature Range -20°C – 50°C
Lifetime unlimited
Measurable gases H2OS, HF / HCL, Hydrazine
Sensor type Single-Gas Detector

Technical Data

Battery Duration rechargable
Weight 0.49 lb
Degree of protection IP 67
Temperature Range -20°C – 50°C
Air humidity 10% to 95%
Air pressure (hPa) 700 – 1300

Features

Dual sensors No
D-Light No
Changable filter no filter in use
Peak Yes
TLV / STEL Yes
Alarm Hold No

Approvals

ATEX I M1 Ex ia I Ma II 1G Ex ia IIC T4 Ga (Zone 0)
IECEx Ex ia I Ma Ex ia IIC T4/T3 Ga
c CSA us Class I, Div. 1, Groups A,B,C,D TC T4/T3 Class I, Zone 0, A/Ex ia IIC T4/T3 /Ga
CE Yes
GOST (EAC) Yes
Performance approval No
Shipping approval No

Downloads

Product Datasheet  Portable Gas Detection - Family Brochure DrägerSensor® & Portable Instruments Handbook

Brochure: Dräger's Guide to Portable Gas Detection
