XPP-5465 FORGE™ INTRINSICALLY SAFE HELMET-MOUNTED MULTI-FUNCTION FLASHLIGHT

The Intrinsically Safe helmet-mounted multi-function flashlight is the most versatile choice for helmet-mounted hands-free lighting. This light outshines the competition with its powerful 360 lumen tightly focused flashlight and a beam distance rating of 218 meters (715 feet). Choose a lower 180 lumen setting for increased runtime or the 30 lumen Survival Mode for 30 hours.

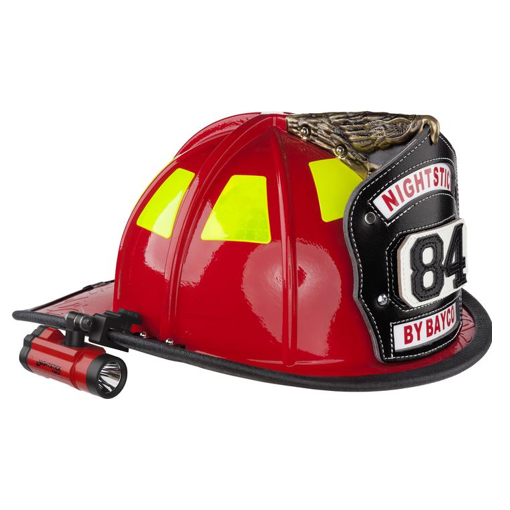

Fits on any fire helmet (or side-brim hard hat) regardless of whether it has an up-turned or down-turned brim thanks to the multi-angle mount that allows exact positioning. This feature makes it possible to not only avoid goggles, face shields, and other helmet-worn gear but also place the light exactly where it’s needed. The 5465 is IP-X7 rated waterproof and meets the requirement for NFPA-1971-8.6 (2013). Powered by 2 CR123 batteries (included). Not compatible with rechargeable batteries.



Features

  • User-selectable 360-lumen High, 180-lumen Low and 25-lumen Survival modes
  • A single push-button switch operates easily with heavy gloves
  • Switch features built-in rear-facing green safety LED

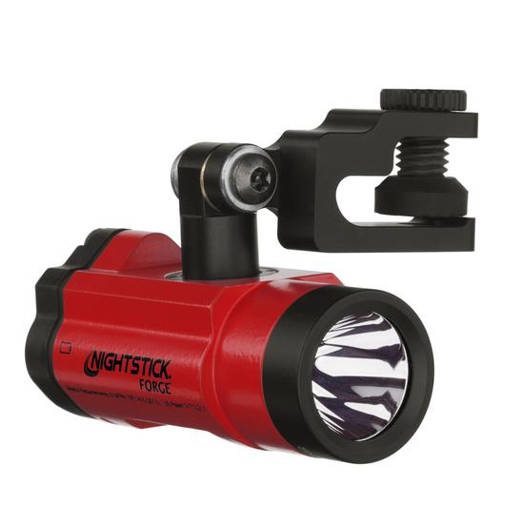

  • A 360-degree multi-angle mount allows the user to select exact angle and position for optimum light alignment and clearance of face shields, goggles or other equipment
  • Helmet clamp with rubber foot provides secure, mar-free attachment
  • Works with virtually all fire helmets and hard hats
  • Impact & chemical resistant
  • IP-X7 Waterproof
  • cETLus certified Class I Div 2 Intrinsically Safe
  • Meets the requirements for NFPA-1971-8.6 (2013)
  • Serialized for personal identification
  • 2 CR123 batteries (included)
  • Limited Lifetime Warranty

Specifications

  • UPC: 017398807135
  • Multi-Function: Yes
  • High Lumens: 360
  • Medium Lumens: 180
  • Low Lumens: 25
  • High Beam Distance (m): 218
  • High Candela: 11,928
  • Medium Candela: 6,544
  • Low Candela: 472
  • Drop Rating: 2 m
  • Water Rating: IP-X7 Waterproof
  • High Runtime (h): 4.5
  • Medium Runtime (h): 6.5
  • Low Runtime (h): 30
  • Switch Function: Single Switch – High, Low and Survival Brightness
  • Light Source: LED
  • Case Material: 6061-T6 Aluminum
  • Body Color: Red
  • Strap/Mount: Helmet Mount
  • Quantity of Batteries: 2
  • Power Source: CR123
  • Package Contents: Light, 2 CR123 Lithium batteries, Allen key
  • US Patent(s) : 9713217
  • Warranty: Limited Lifetime Warranty

Dimensions

  • Length: 3.2 in (81 mm)
  • Depth: 3.2 in (81 mm)
  • Weight: 7.2 oz (204 g)
  • Diameter: 1.1 in (28 mm)

Downloads

Product Datasheet Warranty Instruction Manual Certificate Of Conformity
