XPP-5564RXA [ZONE 0/20] INTRANT DUO

Designed for exceptional versatility, the high lumen INTRANT® DUO Intrinsically Safe Angle Light functions as a flashlight, floodlight, and Dual-Light, tailored for the demanding conditions of fire and rescue operations.

Features

  • cETLus, ATEX, and IECEx listed Intrinsically Safe
  • LED technology
  • Flashlight – Floodlight – Dual-Light
  • 8 User-selectable brightness settings for the Flashlight and Floodlight
  • High-efficiency hybrid parabolic reflector creating a sharp focused flashlight beam and wide floodlight
  • Dual-Light (both the flashlight & floodlight on at the same time) provides for maximum lighting versatility and user safety
  • Engineered Polymer Housing
  • Dual body switches

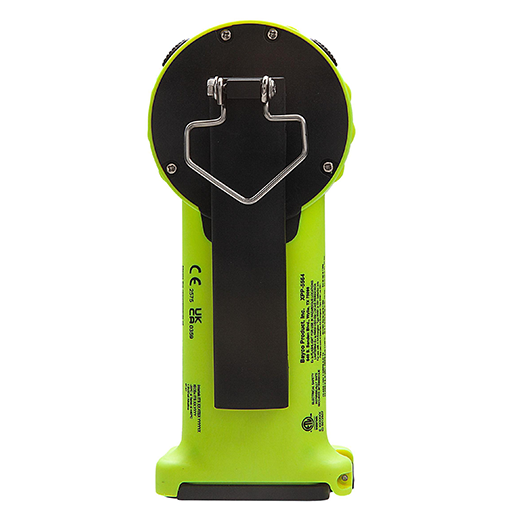

  • Heavy-duty spring loaded clip with stainless steel V-Ring

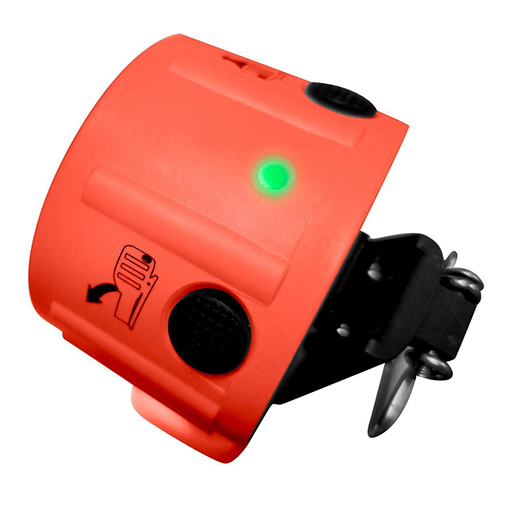

  • Battery status indicator (glows green when full and red when battery low)
  • IP-67 Dustproof/Waterproof
  • Impact & chemical resistant
  • Meets requirements of NFPA-1971-8.6 (2013)
  • 4 AA batteries (included)
  • Serialized for personal identification
  • Limited Lifetime Warranty

Specifications

  • UPC: 017398809245
  • Flashlight Lumens: 320
  • Multi-Function: Yes
  • High Lumens: 320
  • Low Lumens: 100
  • Floodlight Lumens: 275
  • Flood Low Lumens: 100
  • High DL Lumens: 320
  • High Beam Distance (m): 297
  • Low Beam Distance (m): 171
  • High Candela: 22,107
  • Low Candela: 7,333
  • Drop Rating: 2 m
  • Water Rating: IP-67 Dustproof/Waterproof
  • High Runtime (h): 8
  • Low Runtime (h): 15
  • High Flood Runtime (h): 8
  • Low Flood Runtime (h): 28
  • High Dual-Light Runtime (h): 5
  • Floodlight Color: White
  • Switch Function: Dual Body Switches – High/Low Flashlight, High/Low Floodlight, Dual-Light
  • Light Source: LED
  • Serialized: Y
  • Case Material: PC/ABS
  • Body Color: Red/Black
  • Quantity of Batteries: 4
  • Power Source: AA
  • Package Contents: Light & 4 AA Batteries
  • US Patent(s) : 9,713,217
  • Warranty: Limited Lifetime Warranty

Dimensions & Certifications

  • Length: 6.25 in (159 mm)
  • Width: 2.75 in (70 mm)
  • Depth: 2.5 in (64 mm)
  • Weight: 11 oz (3122 g)
  • Head Diameter: 2.75 in (70 mm)
  • CLASS I DIV 1:GRPS A-D T4
  • CLASS II & III DIV 1:GRPS E-G T135°C
  • CLASS I ZONE 0:AEx ia IIC T4 Ga
  • CLASS II ZONE 20:Aex ia IIIC T135°C Da
  • ATEX Certification:I M 1 Ex ia op is I Ma
    II 1 G Ex ia op is IIC T4 Ga
  • IECEx Certification:Ex ia op is I Ma
    Ex ia op is IIC T4 Ga
